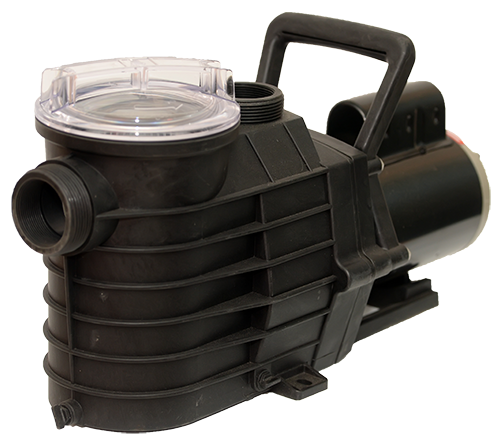

48 SUP

Description & Applications:

SUP series is single stage, centrifugal pumps with built in filter designed to operate with water pool cleaning and water circulation.

The pump body, pump cover and impeller are made of reinforced engineering techno-polymer.

The high reinforce engineering plastic base is vibration-resistance and corrosive-resistance.

SUP series is preferred product for sand filter of swimming pool.

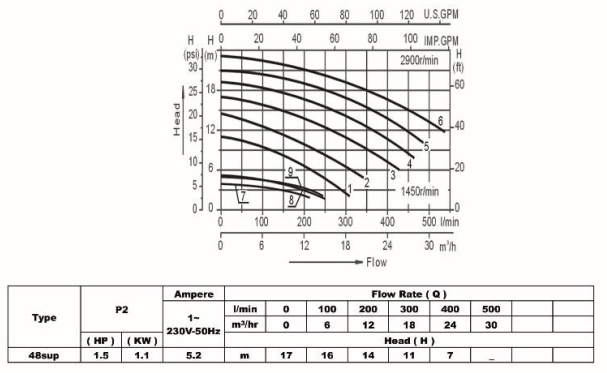

Main Features:

• Flow rate up to 25 m³/hr
• Head up to 17 m
• Max water temperature 50 ºc
• Ambient temperature up to 40 ºc

Component Construction

• Pump body             Reinforced techno-polymer
• Pump bracket        Aluminum
• Diffuser                   Reinforced techno-polymer
• Impeller                  Reinforced techno-polymer
• Pump shaft            Stainless steel AISI 316
• Mechanical seal    Graphite / Silicon

Motor

• Two-pole induction motor (n=2900 r.p.m)
• Internal cooling
• Insulation class F
• Protection degree IP55
• Single phase 220V/50Hz
• Thermal protection
• Continuous service S1
