Description & Applications:

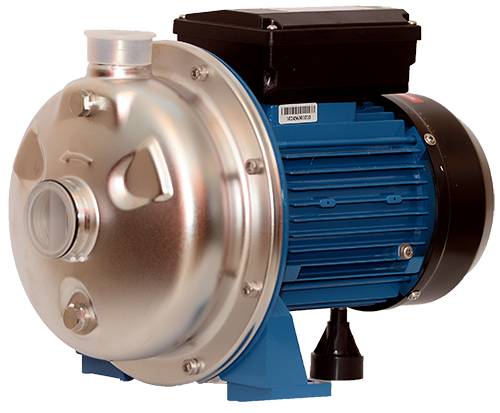

BLC series is single-stage stainless steel pump with closed impeller, Hydraulic bulge technology is adopted, sturdy construction; Compact design; efficient spiral-cased pump body design, all components in contact with the pumped liquid are in stainless steel AISI 316 this guaranteeing complete hygiene and maximum resistance against corrosion

Use in domestic, agriculture, industrial and food processing. Such as water systems, air condition system, etc.

Main Features:

• Flow rate up to 450 l/min
• Head up to 36 m
• Max water temperature 70 ºc
• Ambient temperature up to 40 ºc

Component Construction

• Pump body             Stainless steel AISI 316
• Pump bracket        Aluminum
• Impeller                  Stainless steel AISI 316
• Pump shaft            Stainless steel AISI 316
• Mechanical seal    Graphite / Silicon

Motor

• Two-pole induction motor (n=2900 r.p.m)
• External cooling
• Insulation class F
• Protection degree IP55
• Single phase 220V/50Hz
• Thermal protection
• Continuous service S1
