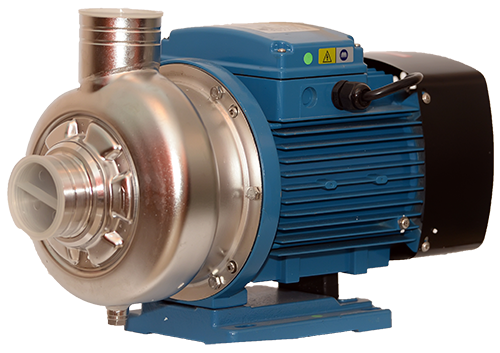

DWB

Description & Applications:

DWB series is single-stage stainless steel pump with a closed impeller, Hydraulic bulge technology is adopted, sturdy construction; Compact design; efficient spiral-cased pump body design, all components in contact with the pumped liquid are in stainless steel AISI 304 this guaranteeing complete hygiene and maximum resistance against corrosion

Use in domestic, agriculture, industrial and food processing. Such as convey a wide range of liquid, air condition system, etc.

Main Features:

• Flow rate up to 600 l/min
• Head up to 29 m
• Max water temperature 70 ºc
• Ambient temperature up to 40 ºc

Component Construction

• Pump body             Stainless steel AISI 304
• Pump bracket        Aluminum
• Impeller                  Stainless steel AISI 304
• Pump shaft            Stainless steel AISI 316
• Mechanical seal    Graphite / Silicon

Motor

• Two-pole induction motor (n=2900 r.p.m)
• External cooling
• Insulation class F
• Protection degree IP55
• Single phase 220V/50Hz
• Thermal protection
• Continuous service S1
