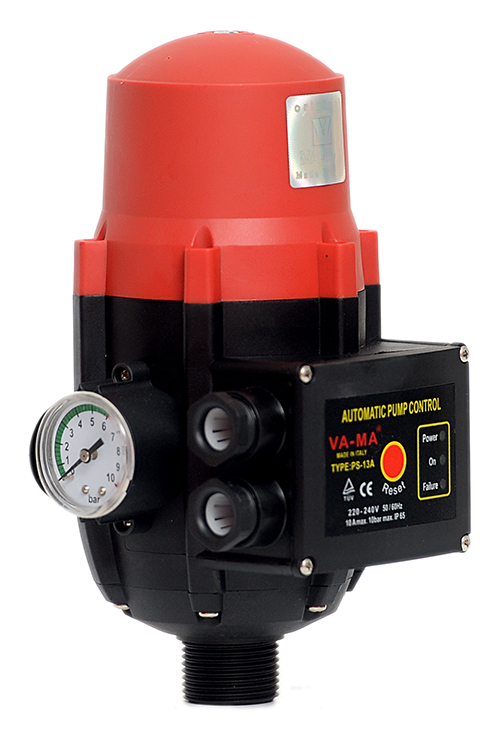

PS-13

TECHNICAL DATA:

• Starting Pressure: 1.5bar or 2.2bar
• Max Rated Current: 10A
• Max Allowable Pressure: 10bar
• Rated Voltage: 110V or 220V
• Frequency: 50/60HZ
• Max Ambient Temperature: 40℃
• Max Liquid Temperature: 60℃
• Protection Degree: IP65

DESCRIPTIONS

• Stop and start the pump automatically
• Stop the pump in the case of water shortage
• After power cut off, it can restart the pump automatically when the power
  Forced start
•  Joint screw: G1″male

OPTIONS:

• Optional models and function
• PC-13A: Starting pressure is adjustable during installation, adjustment range: 1.5bar-3.0bar.
• PC-13M: Automatic restart after water shortage, the restart interval time is 8S, 30S, 1minute, 10minutes, 30minutes, 1hour, 2 hours recycle
• PC-13B with European socket and plug
• The above 3 options function can be achieved at the same time, or you can choose just one, or you can choose any two of them, but the models are differentColor.
• G1″plastic pipe joint for a quick connection to water pump.

Power cable length
