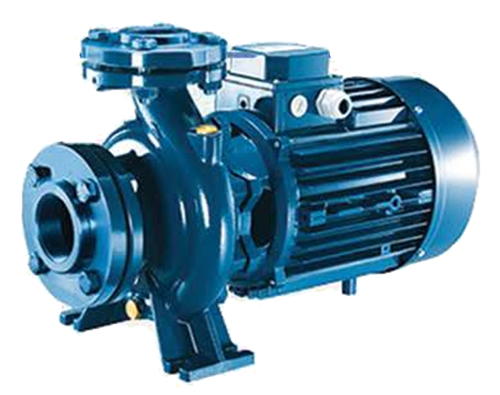

SN Series

SN Series

Description & Applications:

SN series is single impeller centrifugal monoblock electro pumps. This series perform with high water capacity related to good pressure. Use for industrial, civil and agriculture applications and water supplying. Such as fire-fighting, cooling, heating and etc.

Main Features:

• Flow rate up to 650 l/min
• Head up to 62 m
• Max water temperature 50 ºc
• Ambient temperature up to 40 ºc

Component Construction

• Pump body             Cast iron G20
• Pump bracket        Cast iron G20
• Impeller                  Cast iron
• Pump shaft            Stainless steel AISI 304
• Mechanical seal    Ceramic / Graphite

Motor

• Two-pole induction motor (n=2900 r.p.m)
• External cooling
• Insulation class F
• Protection degree IP44
• Three phase 380V/50Hz
• Continuous service S1
