WP

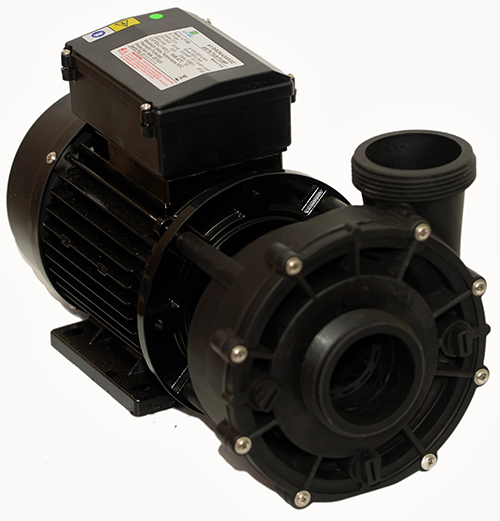

Description & Applications:

WP series spa pool pump is 2 speed pumps for SPA pool that achieve to high-speed for massage and low speed for filter and cycle functions. pump casing is volute design with high-performance and large flow and low-noise. Pump housing could be 90°flexible installations for easy pipe work.

Liquids part is made of high reinforce engineering techno-polymer.

WP Series suitable for hydro massage tube or boosting of spa system and cycle or filter of swimming pool system.

Main Features:

• Flow rate up to 67 m³/hr
• Head up to 18 m
• Max water temperature 50 ºc
• Ambient temperature up to 40 ºc

Component Construction

• Pump body             Reinforced techno-polymer
• Pump bracket        Aluminum
• Impeller                  Reinforced techno-polymer
• Pump shaft            Stainless steel AISI 316
• Mechanical seal    Graphite / Silicon

Motor

• Two-pole induction motor (n=2900 r.p.m)
• External cooling
• Insulation class F
• Protection degree IP55
• Single phase 380V/50Hz
• Thermal protection (for single phase)
• Continuous service S1
